Beyond Your Imagination Super Power Fiber Laser Cutting Machine
Fiber laser is a new type of fiber laser that is newly developed in the world. It outputs high-energy-density laser beam, which is concentrated on the surface of the workpiece, so that the area irradiated by the ultra-fine focus spot on the workpiece is instantly melted and vaporized, and the spot is moved by the numerical control mechanical system. Realize automatic cutting by irradiating position. Compared with bulky gas lasers and solid-state lasers, it has obvious advantages and has gradually developed into an important candidate in the fields of high-precision laser processing, lidar systems, space technology, and laser medicine.
| Model | HN-3015 |
| Working area | 3000mm x 1500mm |
| Laser type | Fiber laser |
| Rated laser power (optional) | 500W~2000W |
| Traditional system | Gantry double drive structure |
| lubrication system | Fully automatic |
| Maximum speed | 100m/min |
| Maximum acceleration | 1.0G |
| positioning accuracy | ±0.01mm/1000mm |
| Repeated positioning accuracy | ±0.03mm/1000mm |
| Support for graphic formats | CAD, DXF(etc) |
| work environment | 0-40 ℃, humidity ≤ 80%, no condensation |
| Total power | 20KW |
| Power demand | Three phase 380V / 50Hz / 60Hz |
| Outline size | 4450mm x 2450mm x 1800mm |
| Total weight approximately | 4000KG |

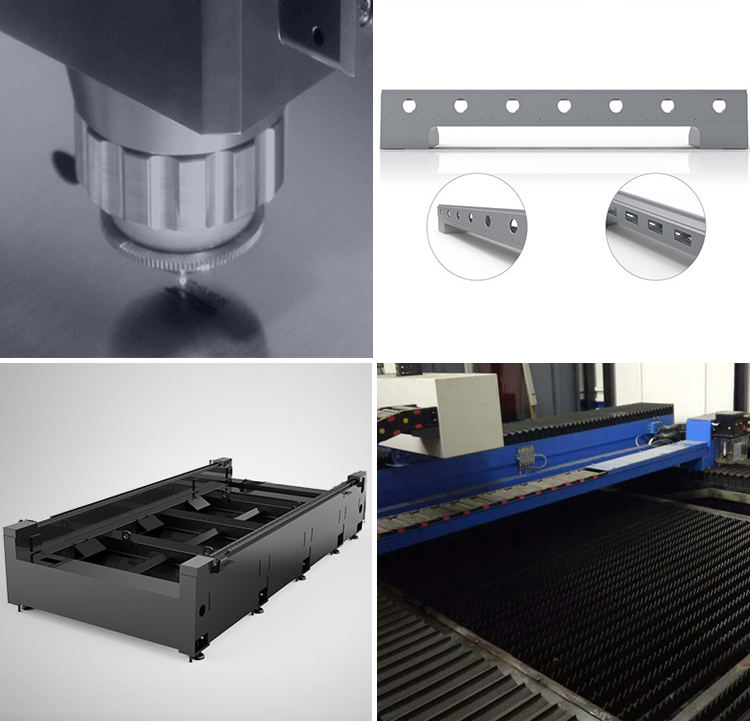

Product details
The fiber laser has high electrical-to-optical conversion efficiency, with a conversion efficiency of more than 30%. The low-power fiber laser does not need to be equipped with a chiller. The use of air cooling can greatly save power consumption during work, save operating costs, and achieve the highest production effectiveness
Applications & samples
It can cut any hardness material without deformation, such as steel plate, titanium alloy steel, fiber laser cutting machine, aluminum alloy plate and cemented carbide.
Factory introduction
Shandong Honest Machinery co., LTD., is a provincial key enterprise specializing in the research and development of numerical control equipment. It integrates development, production and sales.
The company has a series of CNC engraving machines, laser machines and other products, which are widely used in machinery, mold, advertising, wood processing, stone processing and other industries.Equipment sales throughout the provinces, autonomous regions, and exported to Russia, Mongolia, South Korea and other countries.Advanced manufacturing technology, large-scale production, high-quality product quality, professional user training, timely after-sales service, is the basis to ensure customer satisfaction.
Honest products have been widely used in the advertising industry, woodworking industry, craft gifts, architectural models, electronics, CAD/CAM industrial mold industry, decoration, clothing, packaging printing, logo, seal and other industries;And because of its distinctive cost performance in each domestic application field has completely replaced the import of similar products.
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us.
Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
FAQ
1: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
2: When I got this machine, but I don’t know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we alsosupply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
4: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information
1)Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2)Your materials.
Metal/Acrylic/plywood/MDF?
3)You want to engrave or cut?
If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser laser power.
